Protecting your building with proper waterproofing is just as critical as a vapor intrusion mitigation system. For years CETCO has been the leader in defending your structure from water ingress. Now our product line welcomes a new addition to the offering. VINTEGRA® Waterproofing Membranes are a membrane composite comprised of a 500 micron thick, 7 layer engineered film consisting of polyethylene and a EVOH barrier layer with integrated bentonite geotextile waterproofing tanking membrane.
APPLICATIONS
Looking for a versatile waterproofing solution? VINTEGRA® membranes are the answer. Our membranes can be used for underslab installation, property line construction, backfilled walls, and more. Check out our product manual for specifics or contact CETCO for custom guidelines.

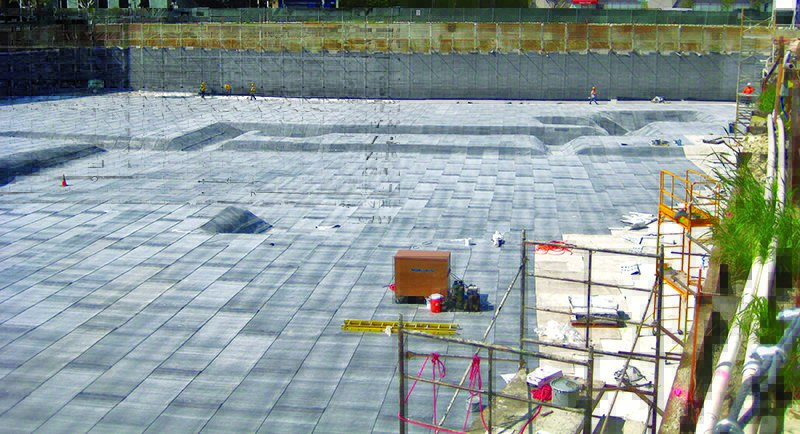

Underslab Installation

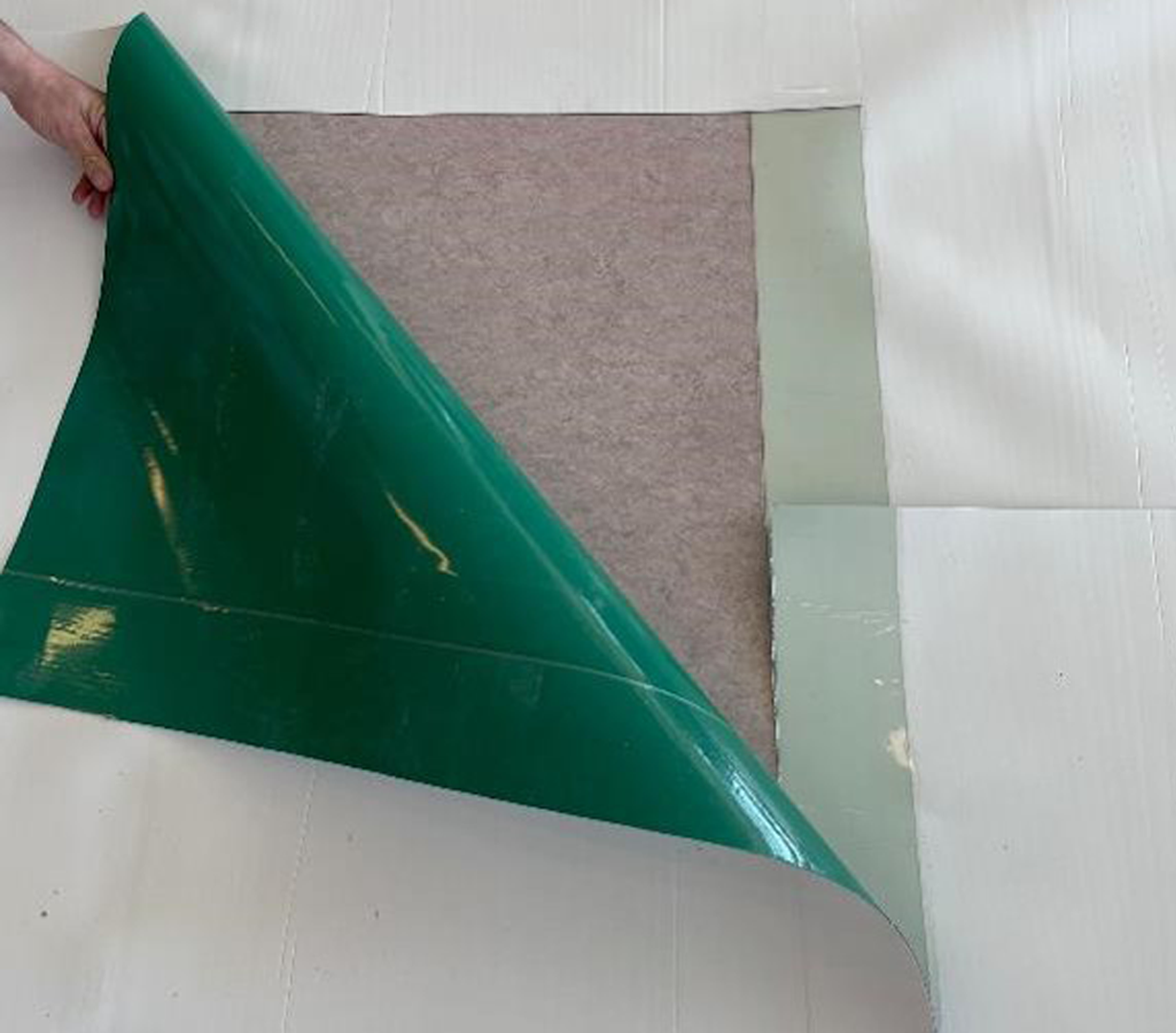

VINTEGRA P20
VINTEGRA P20 is a pre-applied membrane engineered to form a adhesion bond when concrete is poured against it; this membrane remains in direct contact with the slab to provide a watertight and gas vapor barrier.
VINTEGRA P20 can be used in both non-hydrostatic and hydrostatic conditions.

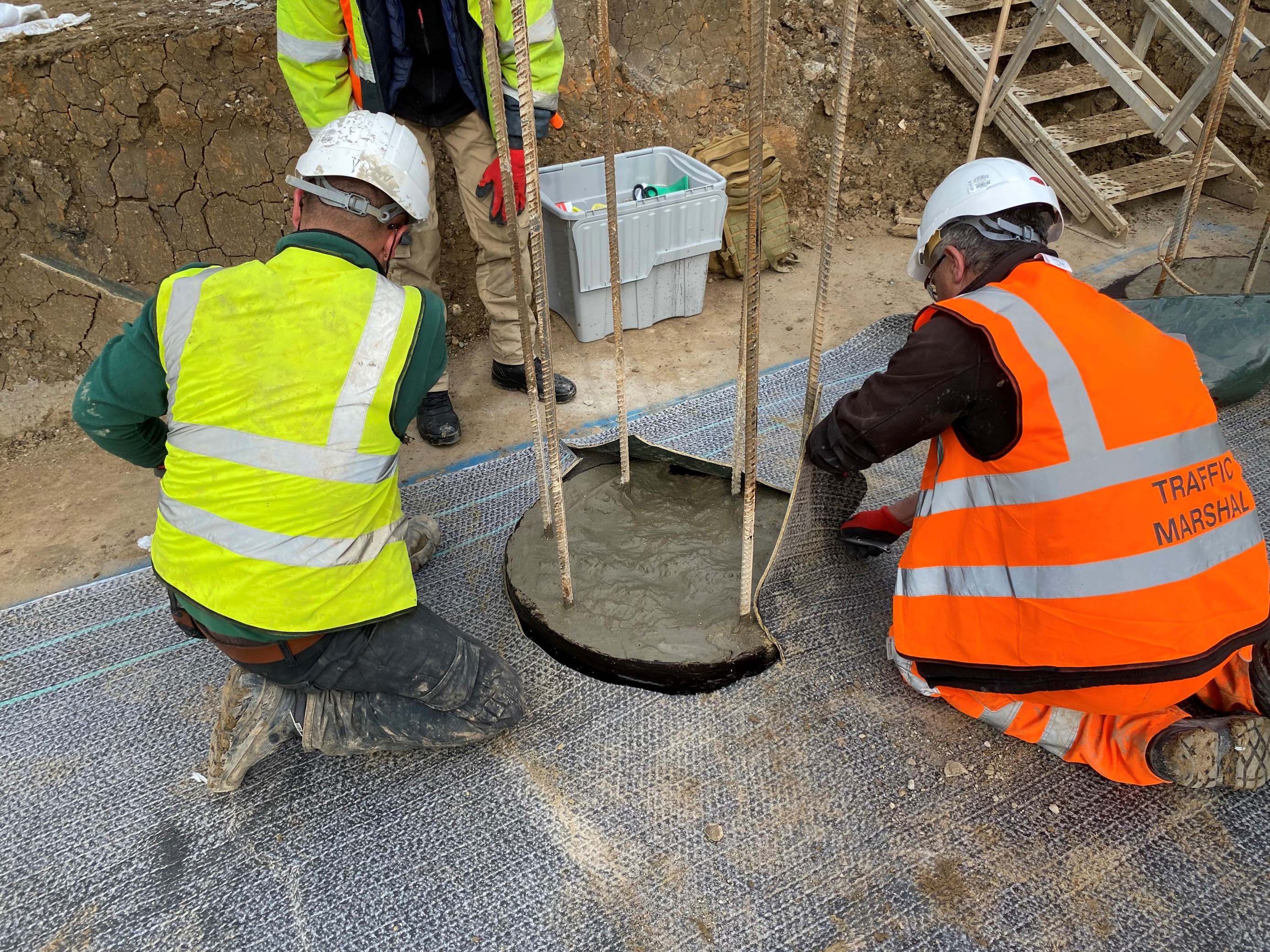

Underslab Installation
VINTEGRA GB20
VINTEGRA GB20 is a pre-applied membrane engineered to form a mechanical bond when concrete is poured against it; this membrane remains in direct contact with the slab to provide a watertight and gas vapor barrier.
VINTEGRA GB20 can be used in both non-hydrostatic and hydrostatic conditions.

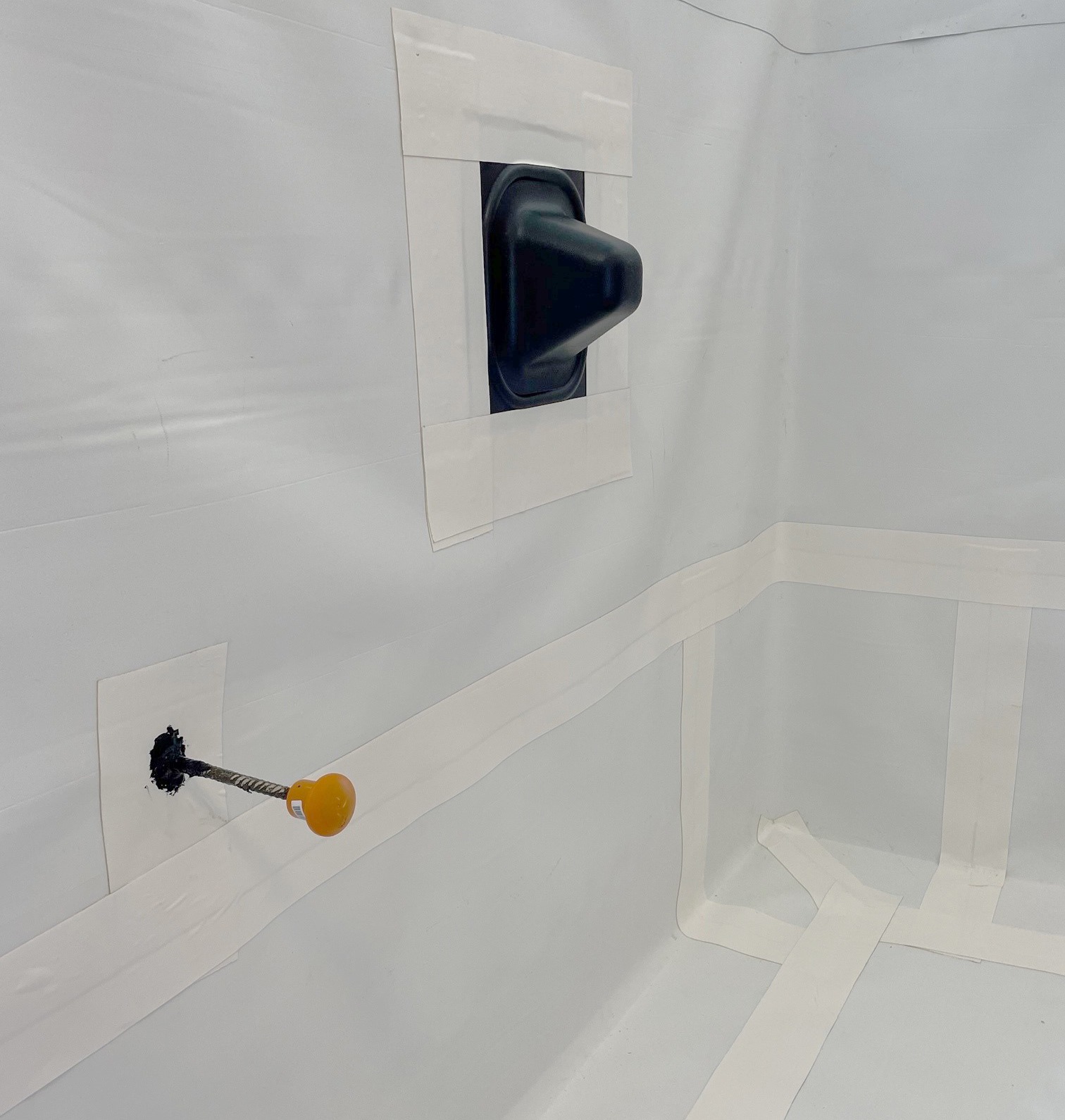

界址线施工
VINTEGRA P20
VINTEGRA P20 is a pre-applied membrane engineered to form a adhesion bond when concrete is poured against it; this membrane remains in direct contact with the concrete foundation wall to provide a watertight and gas vapor barrier. This flexible membrane can be quickly installed on a wide range of shoring retention wall systems, including soldier pile lagging, concrete caisson, shotcrete, and metal sheet piling.
VINTEGRA P20 can be used in both non-hydrostatic and hydrostatic conditions.

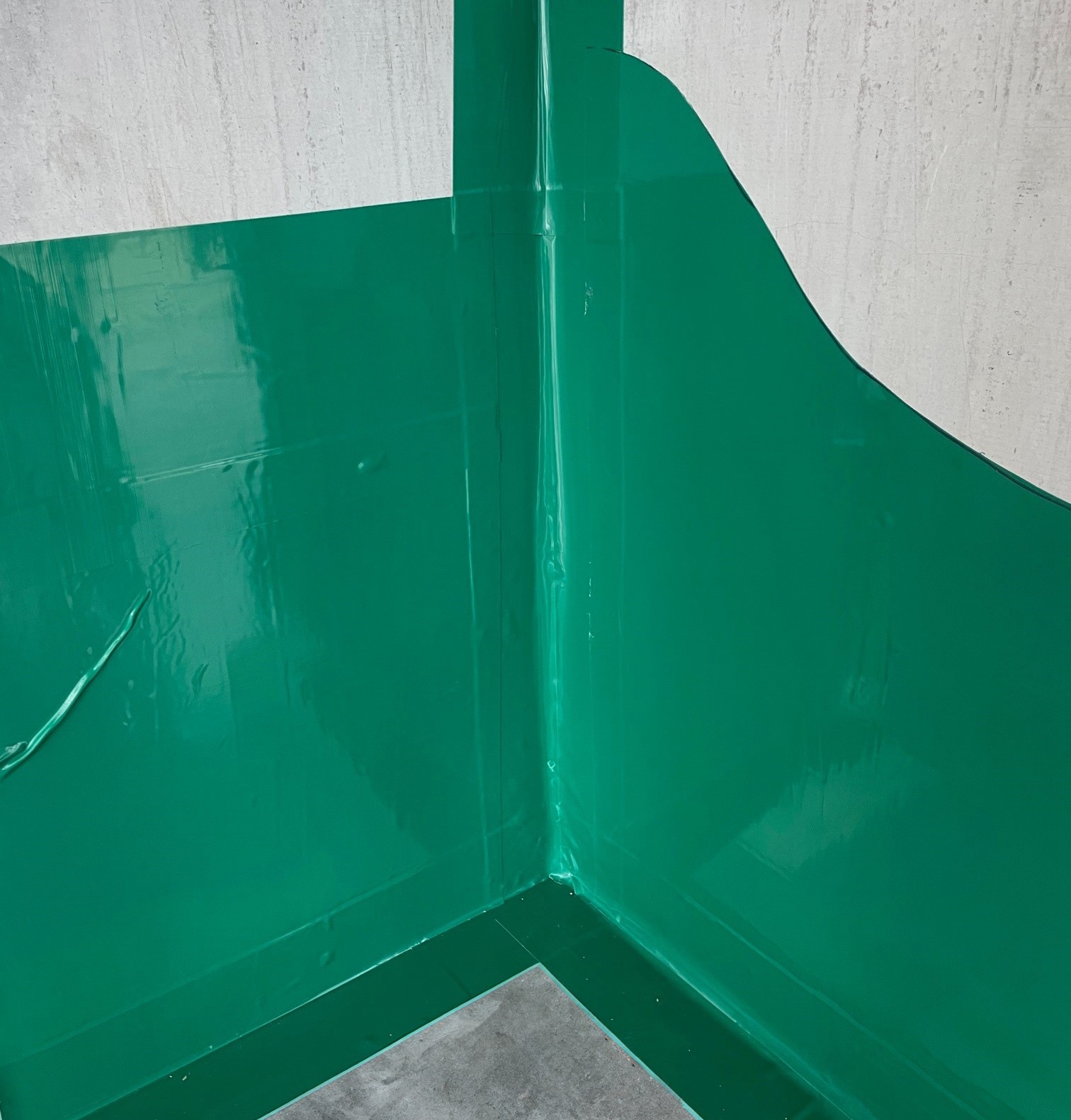

回填墙
VINTEGRA SA20
VINTEGRA SA20 is a post-applied membrane engineered to form an adhesion bond, or when placed directly against conrete; this membrane remains in direct contact with the concrete foundation wall to provide a watertight and gas vapor barrier. This flexible membrane can be applied without a primer on both cured and green concrete, allowing for quick and efficient waterproofing installation.
VINTEGRA SA20 is generally used in conjunction with VINTEGRA P20 or VINTEGRA GB20 underneath the slab to provide a continuous waterproofing and gas vapor barrier system.
VINTEGRA SA20 can be used in both non-hydrostatic and hydrostatic conditions.

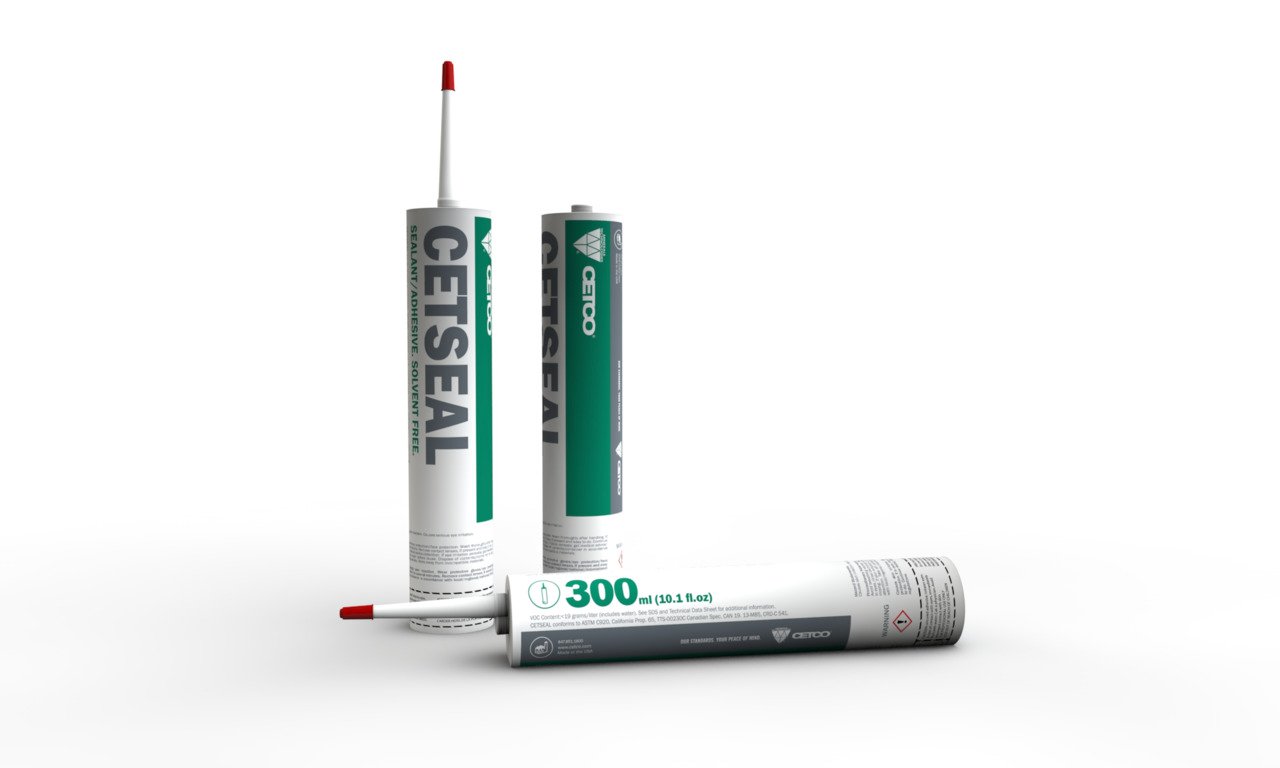

ACCESSORIES
